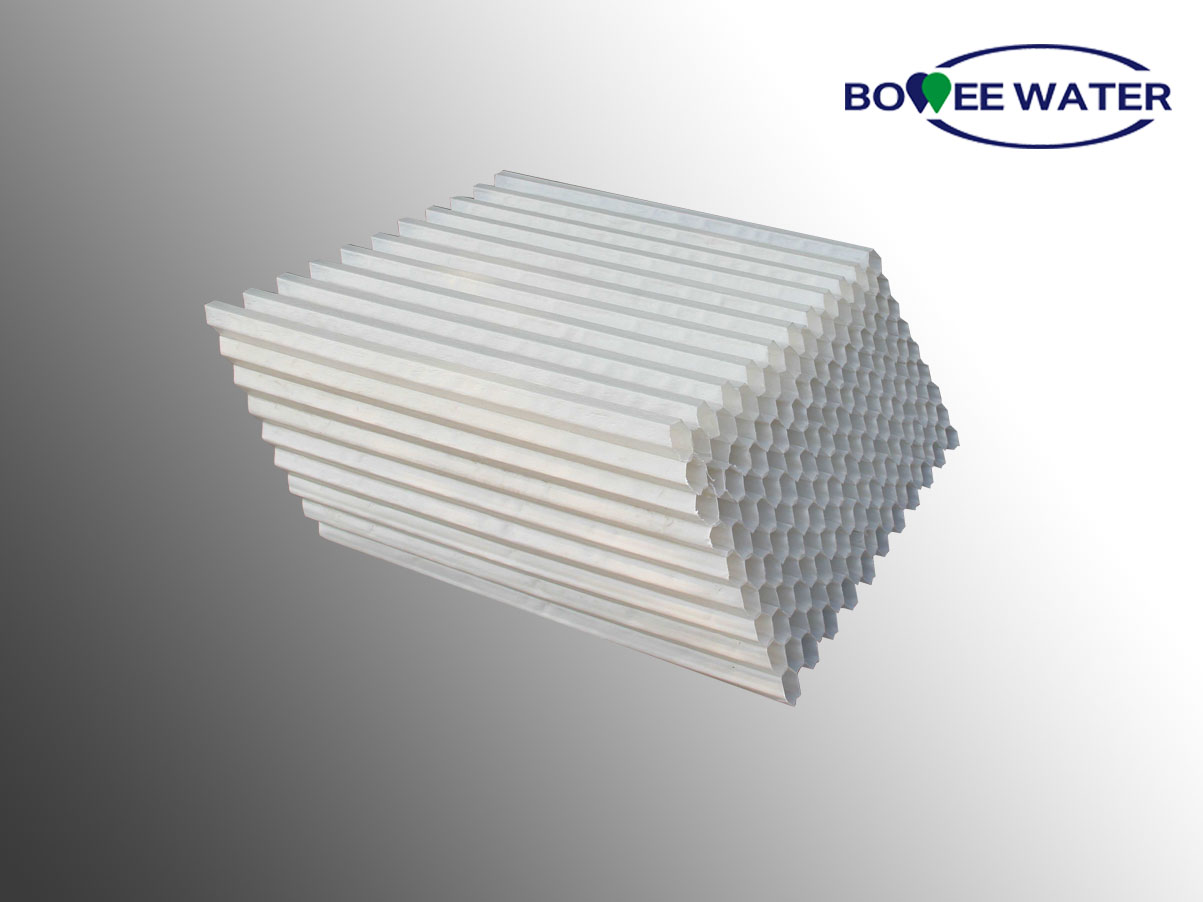

Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment. Tube settlers are single plastic profiles combined to tubes.
Specifications:
Material: PP or PVC
Aperture diameter: 25-80mm
Thickness: 0.4-1mm
Sheet size: 1000*1000mm
Inclined angle: 60°
Tube settlers, also called lamella clarifiers, are used to remove solids in the waste water treatment. Tube settlers are single plastic profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in water and waste water treatment plants. Different executions support a better process and cost reduction of the plant.
Advantages of tube settlers (lamella clarifiers)
1. Process efficiency
From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope
2. Flexible dimensions
It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
3. Easy handling
Simple on site assembly method grants low cost, safe delivery to any place in the world.

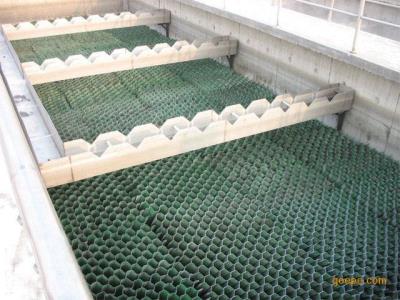

4. Sophisticated support system
With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit.
5. Strong and high quality material
We provides high stability of the modules for easy maintenance – PP material approved for high standards of potable water applications

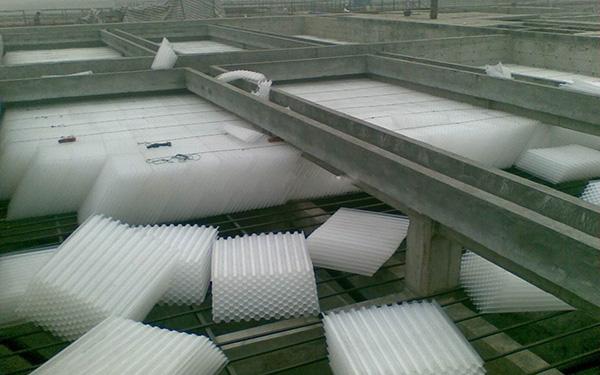

Design and build new clarifiers and settling tanks equipped with tube settlers

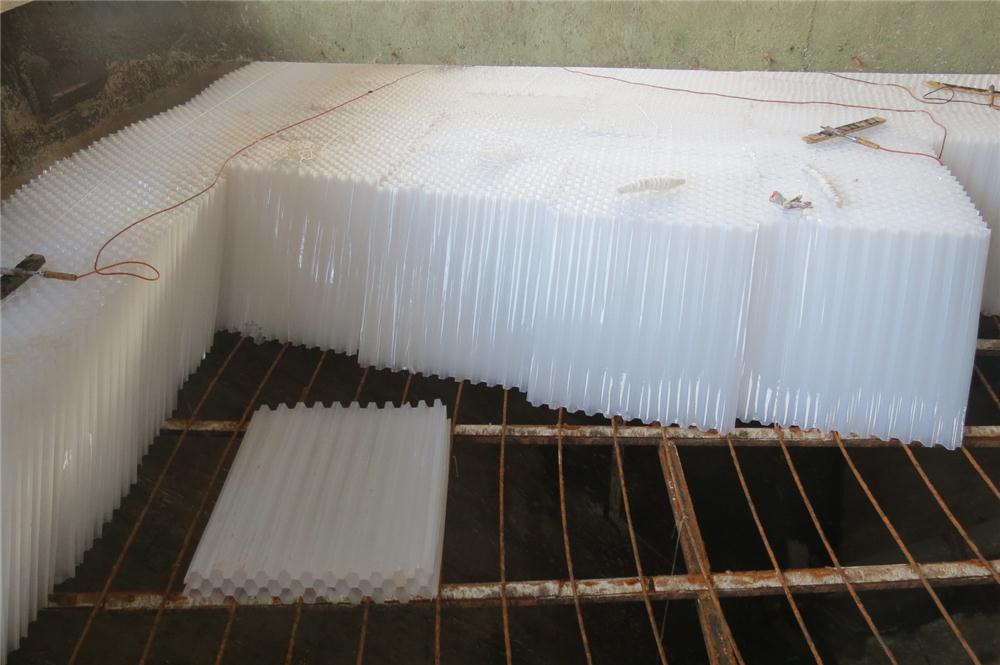

Retrofit existing clarifiers and sedimentation basins with tube modules to increase settling capacity and increase throughput
Provide replacement tube modules for existing installations
Our Environmental designs and builds liquid cleaning and recycling equipment including:
· Circular Clarifiers
· Parallel Plate Settlers
· Tube Settlers
· Horizontal and Vertical Clarifiers
· Air Strippers
· API Separators
· Oil Recovery Units
· Complete Engineered Systems
Item | PP tube settler media | PVC tube settler media | ||||||||
Picture |
|
| ||||||||
Aperture diameter(mm) | 25 | 30 | 40 | 50 | 60 | 25 | 30 | 40 | 50 | 60 |
Sheets number in one block | 60 | 50 | 40 | 32 | 20 | 60 | 50 | 40 | 32 | 20 |
Thickness(mm) | 0.4-1 | |||||||||
Sheet size(mm) | 1000×1000 | |||||||||
Block size(mm) | 1000×1000×866 | |||||||||
Connect type | Electric iron | PVC glue | ||||||||
Inclined angel | 60° | |||||||||
Density(g/cm3) | 0.92 | 1.35-1.46 | ||||||||
Features | Soft, easy to float | Easy to be aging and slightly toxic | ||||||||
Color | White | Black or blue | ||||||||

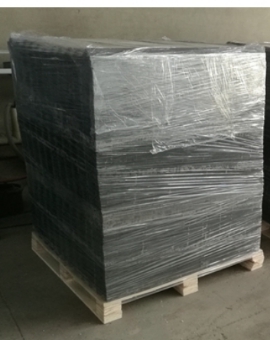

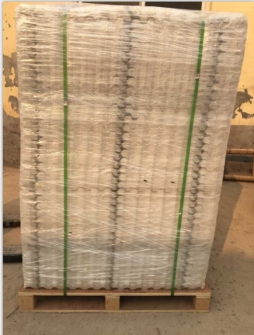

Packing type

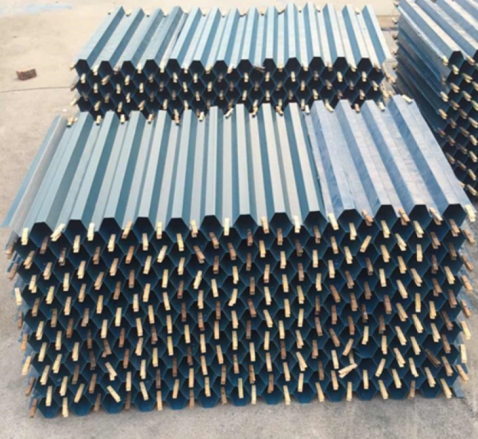

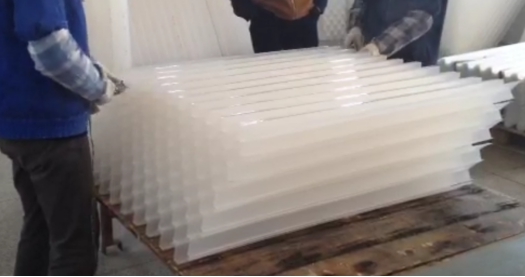

Bonded by PVC glue

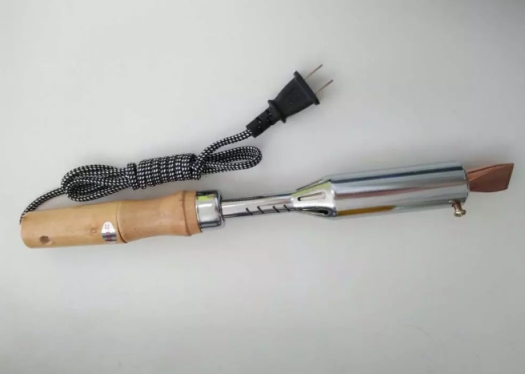

Electric iron

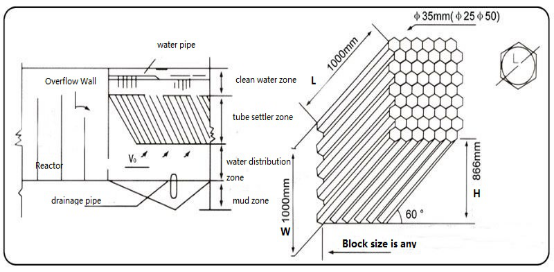

1.Large watted perimeter, small hydraulic radius.
2.Good laminar flow, particles falling free from flocculent flow interference.
3.As long as inclined tube is 1meter, effective loadis designed by 3-5 tons/m 2 .VO in 2.5-3.0 mm/sec range and best water quality.
4.Adopting honeycomb inclined pipe in water inlet with tube 2.0 to 3.0 meters ensure safe operation processing in high turbidity of 50-100 kg/m3 clay sand content.
5.Processing power of inclined pipe sedimentation tank is horizontal-flow settling tank 3-5 times, accelerating water clarification and pulse water clarification of 2-3 times.
