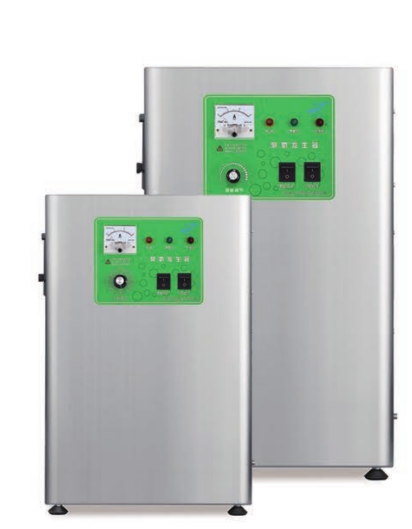

This product is corona discharge type ozone generator with portable design. Generation chambers utilizing dehydroxylation quartz glass structure with high safety factor, good stability, unique cooling technology, effective heat dissipation and low working temperature.
Product List
Ozone generator(air source)
-
Description
This product is corona discharge type ozone generator with portable design. Generation chambers utilizing dehydroxylation quartz glass structure with high safety factor, good stability, unique cooling technology, effective heat dissipation and low working temperature. Power supply unit come with epoxy sealed, the modular design, together with moisture-proof, corrosion-proof, over-voltage protection, power converter thermal protection, high pressure open circuit protection, short circuit protection, high anti-jamming ability, stable continuous performance. Components, connectors and gas piping are antioxidant have ensured the products have longer lifespan, bigger corona discharge area, lower temperature and higher ozone concentration.
-
Applications
Food processing workshop sterilization, food processing equipment disinfection, cold storage disinfection, production workshop air sterilization purification, fruits and vegetables processing, storage and mouldproof preservation, mineral water quality and the production water sterilization containers, packages, production tools such as disinfection.
-
Technical parameters
Model
Ozone output
(g/h)
Power
(kW)
Net weight
Dimension
(mm)
Cooled way
Gas supply
BWA-15G
15
0.25
14
40*30*62.5
Air cooled
Clean dry air
BWA-20G
20
0.28
15.4
BWA-30G
30
0.35
20
40*30*73
Water cooled
BWA-40G
40
0.40
22
50*40*85
BWA-50G
50
0.53
39
50*40*91
BWA-60G
60
0.68
45
BWA-80G
80
0.95
50
50*45*110
BWA-100G
100
1.04
53
BWA-150G
150
2.0
90
60*50*139
BWA-200G
200
2.3
93
-
Advantages
· unique air-cooled cooling technology;
· the shell is made of 304 stainless steel with portable design, atmospheric and beautiful, durable;
· high conversion efficiency, low energy consumption, long service life;
· Compatible with air or oxygen source
· Air-compressor integrated
· Adjustable ozone output:10-100%
-
